Product Details
- Size: 23CBM
- Place of Origin: China
- Brand Name: ZOT
- Model Number: T926
- Weight: 3500.000 kg

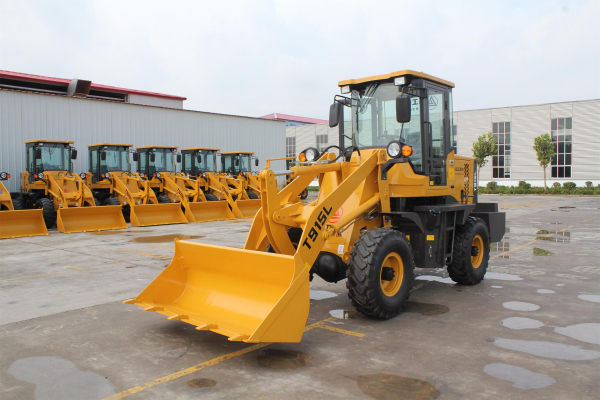

| Item | T915L | T926L | T930L | T933L | T936L | T939L | |
| Loading Capacity(kg) | 800kg | 1000kg | 1600kg | 1800kg | 1800kg | 2000kg | |
| Operating weight(kg) | 2800kg | 3500kg | 4300kg | 4600kg | 5200kg | 5900kg | |
| Max Tractive Force（ Kn ） | 25KN | 25KN | 30kN | 30kN | 30KN | 50KN | |
| Dumping Height（ mm ） | 2800mm | 3200mm | 3300mm | 3400mm | 3500mm | 3500mm | |
| Dumping Distance（ mm ） | 860mm | 950mm | 980mm | 980mm | 1100mm | 1100mm | |
| Grade ability（ % ） | 35% | 35% | 35% | 35% | 35% | 35% | |
| Min Turning Radius（ mm ） | 4600mm | 5400mm | 5400mm | 5400mm | 5400mm | 5900mm | |
| Dimensions | |||||||
| Length（ mm ） | 4960mm | 5980mm | 6050mm | 6200mm | 6050mm | 6500mm | |
| Width（ mm ） | 1670mm | 1920mm | 2060mm | 2070mm | 2200mm | 2220mm | |
| Height（ mm ） | 2710mm | 2810mm | 2890mm | 2890mm | 2960mm | 3010mm | |
| wheel base（ mm ） | 2086mm | 2216mm | 2300mm | 2300mm | 2510mm | 2660mm | |
| Tread（ mm ） | 1355mm | 1425mm | 1505mm | 1575mm | 1575mm | 1710mm | |
| The minimum clearance | 345mm | 265mm | 310mm | 370mm | 340mm | 430mm | |
| Engine | |||||||
| Manufacturer | Quanchai | Yunnei | Yunnei | Yunnei | Yunnei | Yuchai /Cummins | |
| Model | QC2015 | YN25GB | 4100GB | 4100GBZ | YN38GBZ | YC4D80-T20/4BT3.9-C100 | |
| Power(Kw) | 24KW | 37KW | 48kW | 55kW | 76KW | 58/75KW | |
| Transmission | |||||||
| Converter Tyre | Six axis transmission | Six axis transmission | 265torque converter | 265torque converter | 280gearbox and converter | 280gearbox and converter | |
| Low speed(km/h) | 4/7 Km/h | 0～ 9Km/h | 0～ 11Km/h | 0～ 11Km/h | 0～ 11Km/h | 0～ 11Km/h | |
| High Speed(km/h) | 16/29 Km/h | 0～ 24Km/h | 0～ 27Km/h | 0～ 27Km/h | 0～ 27Km/h | 0～ 27Km/h | |
| Service Brake | Hydraulic brake | Hydraulic brake | air brake | air brake | air brake | air brake | |
| Axles | Isuzu Strengthen Axles | Isuzu Strengthen Axles | ZOT | ZOT | ZOT | ZOT | |
| Battery | 6-QW-60MF | 6-QW-80MF | 6-QW-80MF | 6-QW-80MF | 6-QW-100MF | 6-QW-100MF | |
| Cabin | Luxury | Luxury Cabin | Luxury | Luxury | Luxury | Luxury | |
| Chair | Comfort | Luxury Chair | Luxury | Luxury | Luxury | Luxury | |
| Steering System | |||||||
| Type | Full Hydraulic steering | Full Hydraulic steering | Full Hydraulic steering | Full Hydraulic steering | Full Hydraulic steering | Full Hydraulic steering | |
| Steering Angle(°) | ±33° | 33° | ±33° | ±33° | ±33° | ±33° | |
| Hydraulic system | |||||||
| System Pressure（ Mpa ） | 16MPa | 16Mpa | 16MPa | 16MPa | 16MPa | 18MPa | |
| Total Time(s) | ≤ 9s | ≤ 9s | ≤ 9s | ≤ 9s | ≤ 9s | ≤ 9s | |
| Oil Tank | |||||||
| Fuel Tank(L) | 77L | 72.5L | 102L | 102L | 94L | 94L | |
| Hydraulic Oil Tank(L) | 35L | 35L | 52L | 55L | 61L | 63L | |
| Tyre | |||||||
| Model | 8.25-16 | 16/90-16 | 20.5/70-16 | 16/70-20 | 16/70-20 | 16/70-24 | |
| Front tyre Pressure(Mpa) | 0.3MPa | 0.3Mpa | 0.3MPa | 0.33MPa | 0.33MPa | 0.33MPa | |
| Rear tyre Pressure(Mpa) | 0.28MPa | 0.28Mpa | 0.28MPa | 0.30MPa | 0.30MPa | 0.30MPa | |
| Bucket | |||||||
| Capacity(m³) | 0.32-0.5m³ | 0.5-0.7m³ | 0.7-0.85m³ | 0.7-0.85m³ | 0.75-0.95m³ | 1.0-1.3m³ |
